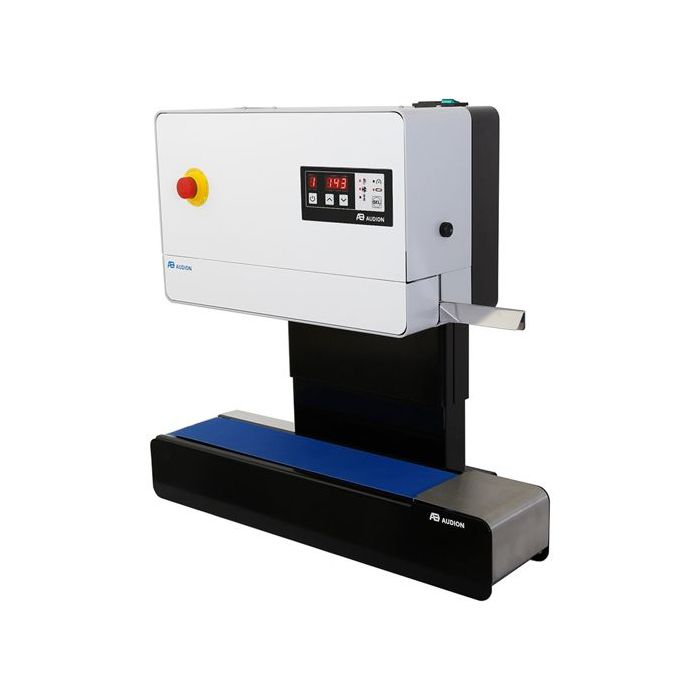

On this tabletop continuous sealer, pouches are sealed in a standing position. The standing position is ideal for powders, liquids or solid products that would spill if sealed with the pouches lying flat. The temperature, running speed and cooling (by means of a special fan) are all easily adjustable via a digital control panel. The D 545 AV can be programmed with up to 9 pre-set seal settings. It is also possible to seal header cards with the D 545 AV.
The sealer is electrically adjustable in height with regard to the optional conveyor belt which allows for interchanging multiple sizes of stand up pouches.
Characteristics:
Seal length
Unlimited
Seal width
10 mm
Thickness of the pouch
2x20 - 2x120 micron
Bag height
135 - 430 mm
Max bag flap lenght
45 mm (above seal)
Seal temperature
0 - 250°C
Suited materials
Cellophane, pp and all laminated bags
Throughput speed
up to 10m per minute
Machine weight
44.2 kg
Dimensions
673 x 355 x 502/802 mm
Power supply
230V – 500W
Power cable length
2.0 m
IP value
IP20
Shipping costs
€9,95NLD
€10,95BEL, DEU
€12,95FRA, LUX
€19,95AUT, CHE, DNK, LIE
The prices shown are exclusive of VAT.
€28,95ESP, EST, FIN, ITA, SWE, PRT, SVK
€32,95CZE, HRV, HUN, LVA, NOR, POL, SVN
€39,95GBR, IRL
€49,95GRC, ISL
PouchDirect deal
Wow! Did you know that the shipping costs are free with an order from € 500? That is a good deal.
All customers from non-EU countries (NO/UK/ ISL/ CHE) have to pay import duties before delivery (to local authorities)
